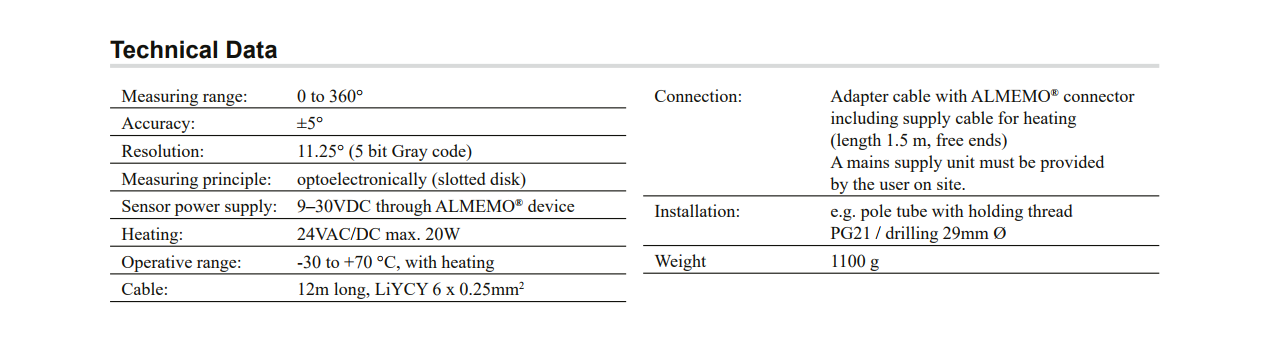

· 측정 범위 : 0 to 360 °
· 정밀도 : ± 5 °
· 분해능 : 11.25 ° ( 5 bit Gray code)
· 측정 원리 : optoelectronically (slotted disk)
· Sensor power supply : 9–30VDC through ALMEMO® device
· Heating : 24VAC/DC max. 20W
· Operative range : -30 to +70 °C, with heating
· Installation : e.g. pole tube with holding thread PG21 / drilling 29mm Ø
· Weight : 1100 g
